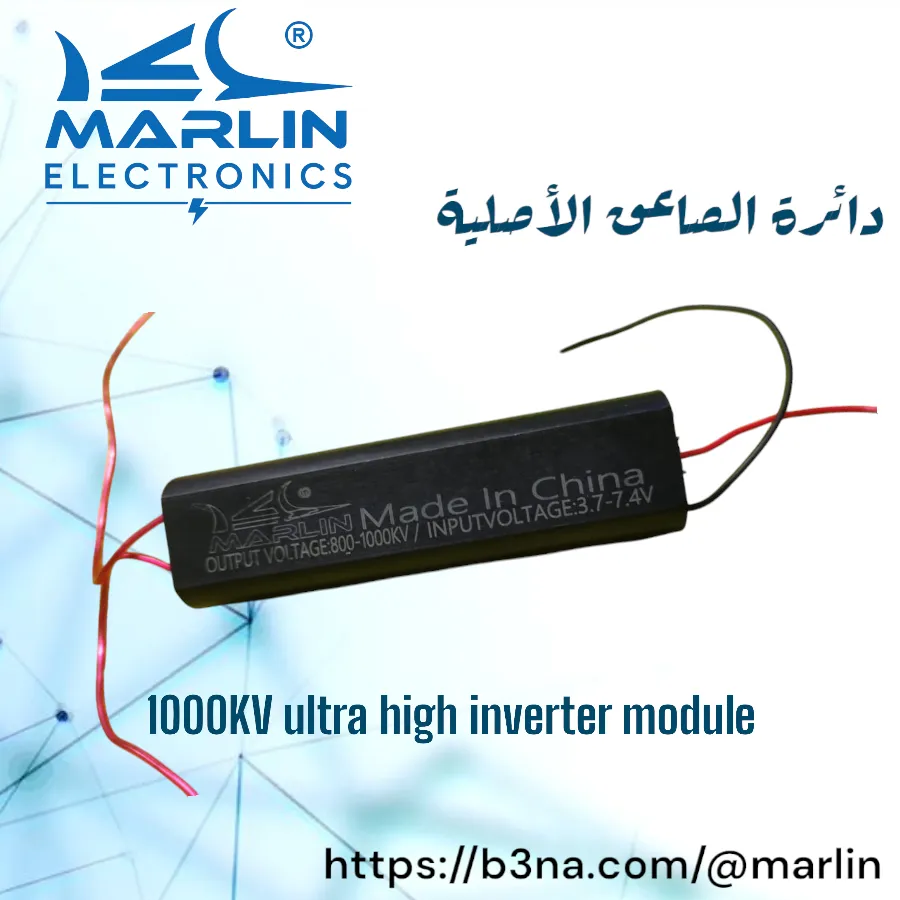

1000KV Ultra-High Voltage Pulse Generator DC Super Arc Module High Voltage Inverter Module

1000kV product parameters :

Input voltage: DC3 7V-7.4V

The red positive electrode and the green negative electrode shall not be connected reversely. The connection method will burn the module

Input current: 0.5a-1a (voltage related)

High voltage type: pulse high and low voltage integrated type

Output voltage: about 800kv-1000kv (please pay attention to safety when using)

Discharge distance between high voltage poles: 10-20mm

Length of output high voltage line: About 100mm

Length of input power line: About 100mm (red line is positive)

Overall dimension: 88 * 26mm
